This article describes how to set up the BarView2 with Domino.
Requirements: TapNet module in your license
1. Setup the TapNet node
First, setup the TapNet node to be used with the BarView2.
- Go to Init/PC and add a TapNetHub device to your PC (category TapNet).
- Go to TapNet/Nodes, select the TapNetHub device and add a SelfTap node to it.

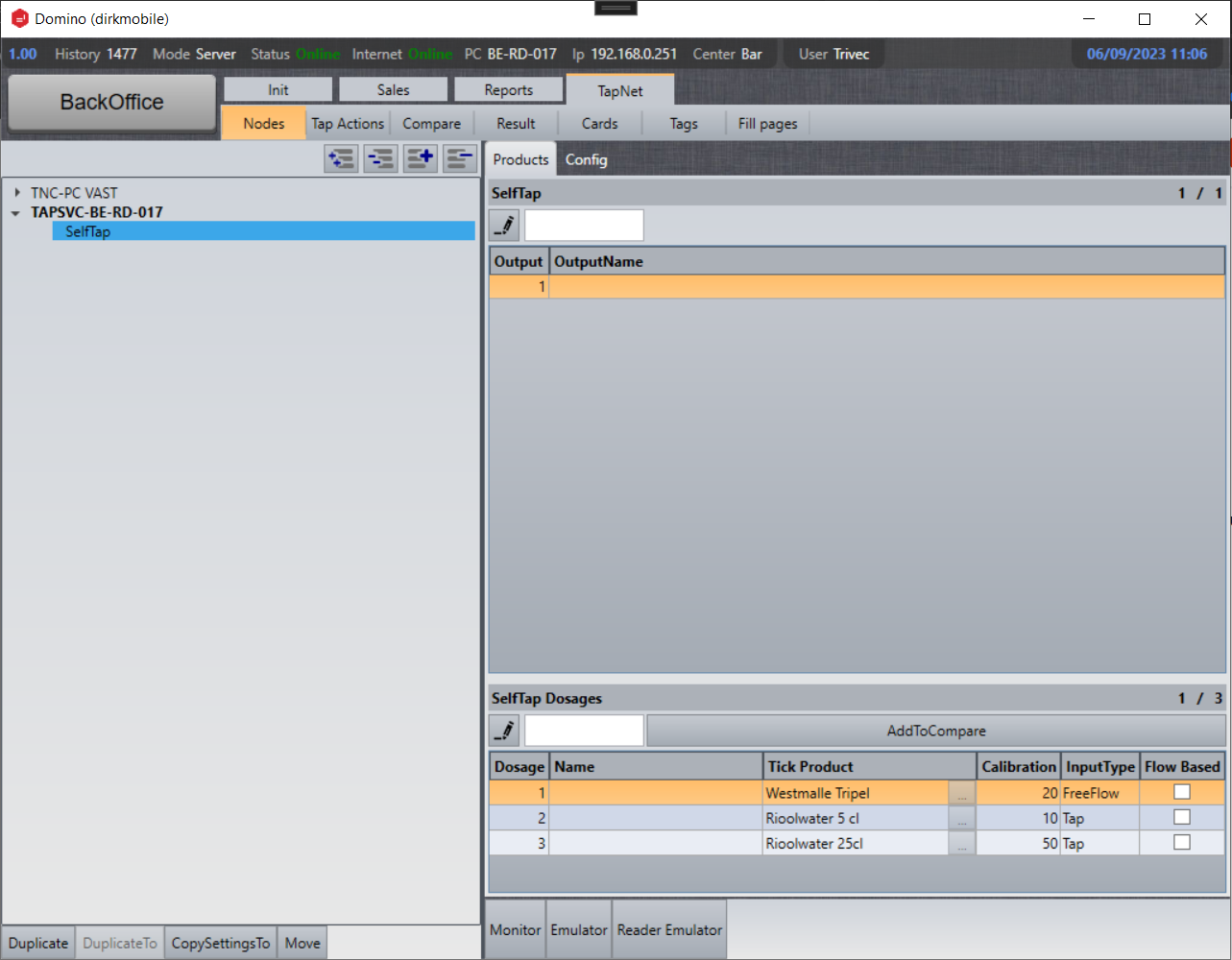

- Select the SelfTap node. You will see it has 1 output and 3 dosages. You will need to select a Tick Product for dosage 1 at least. This is the product that will be shown on the BarView2.

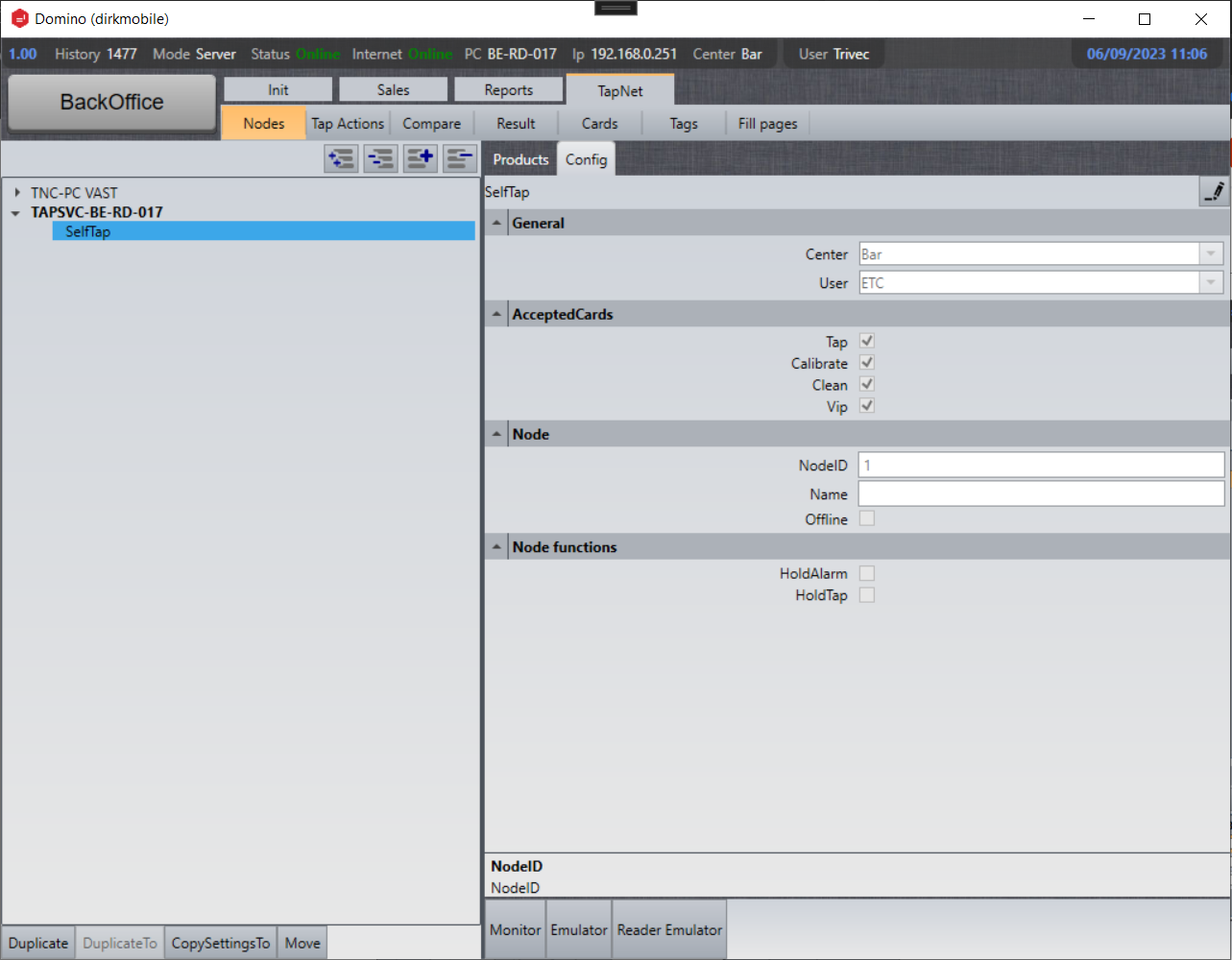

Go to the Config tab and select a center and user for the node.
2. Add the BarView2 device

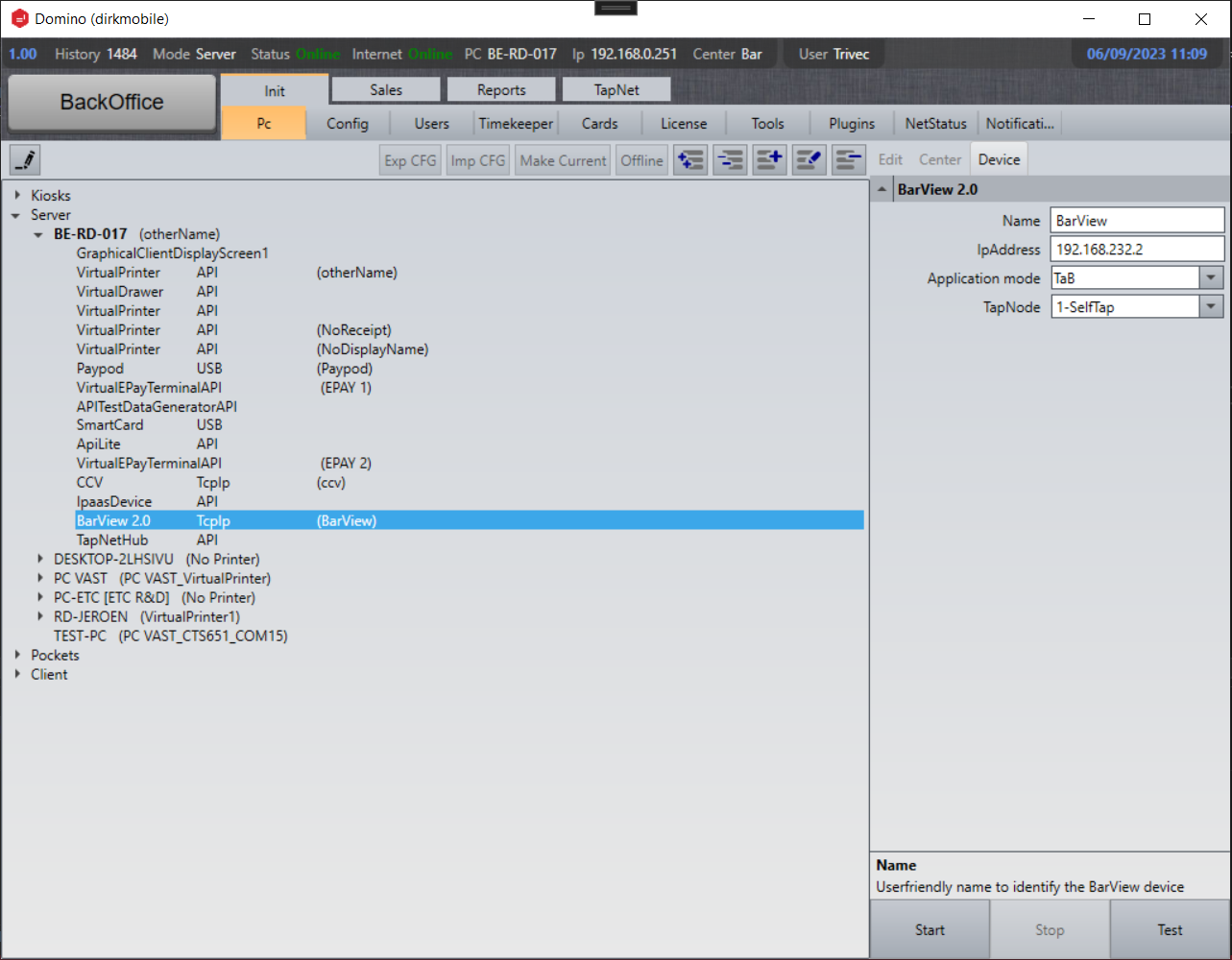

- Go to Init/PC and add a BarView 2.0 device to your PC (category TapNet).
- Configure a name and IP address, and select the SelfTap Node from the TapNode dropdown.
- Press Start to have Domino send the configuration to the BarView. If this fails (wrong IP, BarView not running…), Domino will show an error and the device will automatically be stopped.
