Enabling DHCP on VPOS

This article explains how to enable DHCP on a VPOS device.

This is a common step required when troubleshooting the connectivity of POS devices in cases where network interface LED is on/blinking but device is unable to connect to local network.

  • Log into Domino with a user profile that has permission to shut down Domino.
  • Select Cash and Exit in the upper left corner.

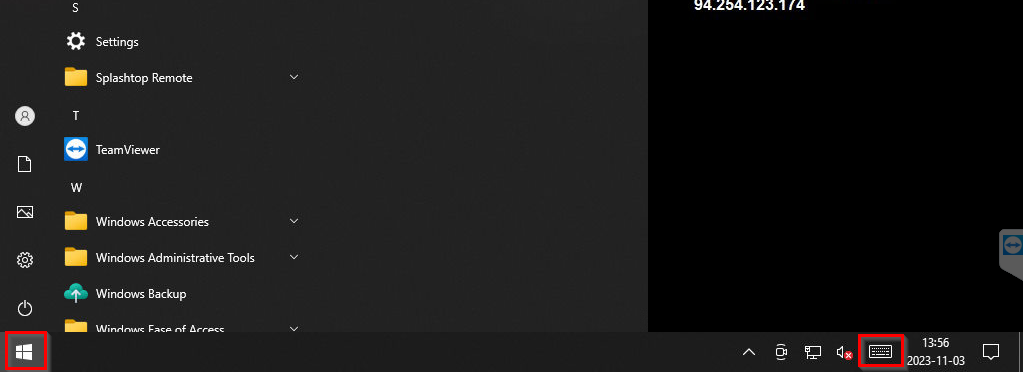

  • Click the Start button in the lower left corner and then click the On-Screen Keyboard symbol  in the lower right corner (alternatively, connect a USB keyboard):

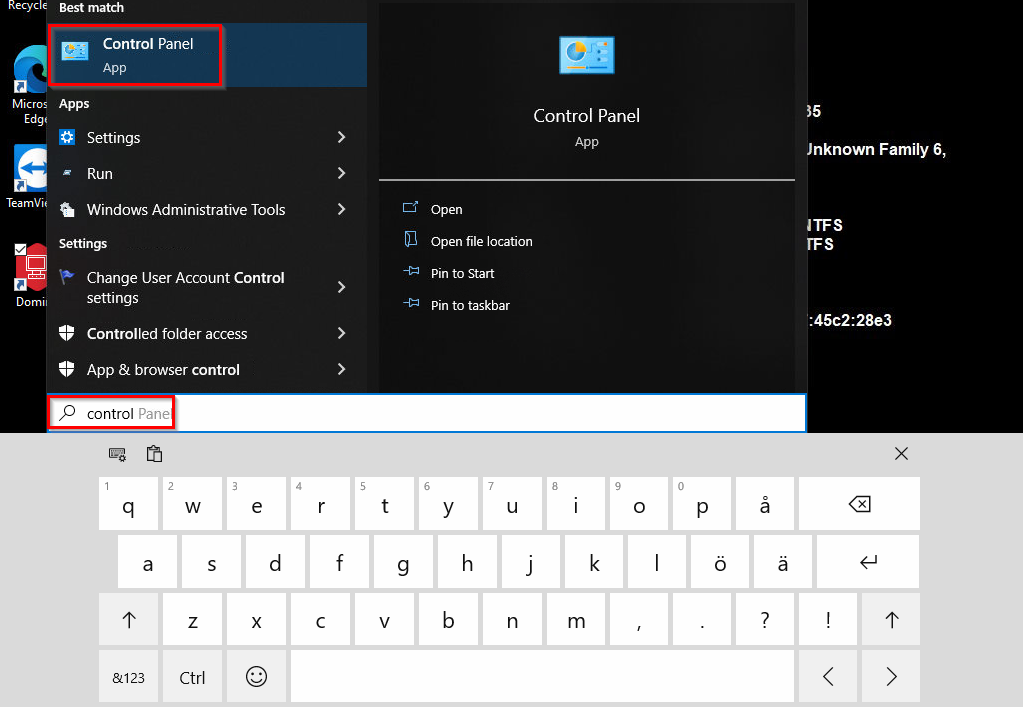

  • Use your On-Screen keyboard (or external USB keyboard) to type "control". Select Control Panel app when it appears as a result:

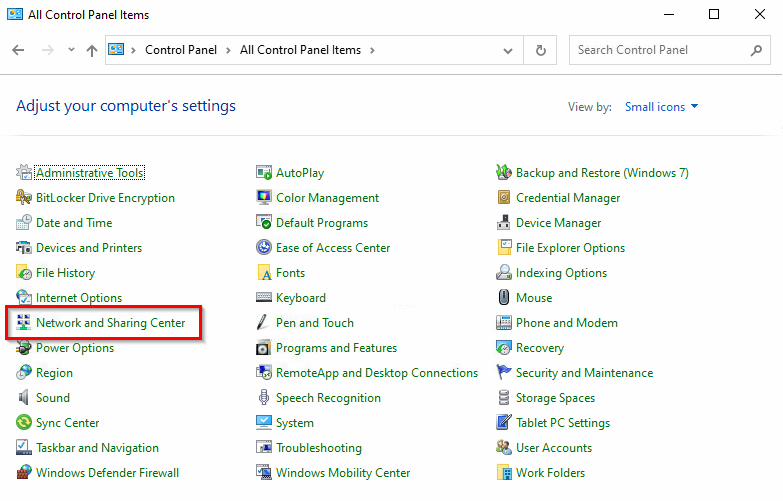

  • If your Control Panel looks like this, select Network and Sharing Center:

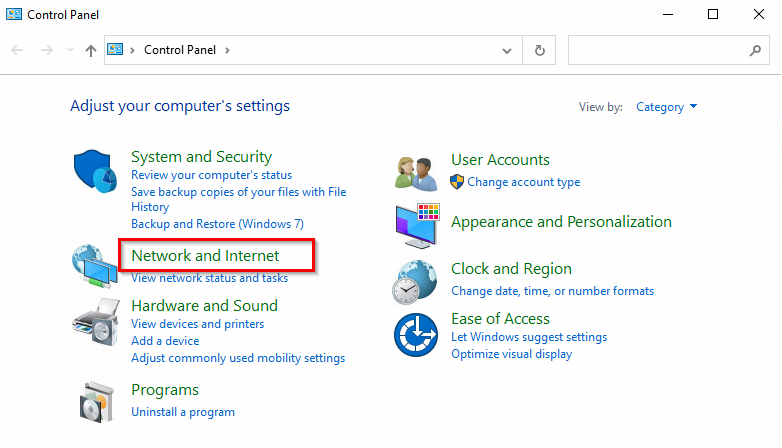

  • Alternatively, if your Control Panel looks like this, select Network and Internet:

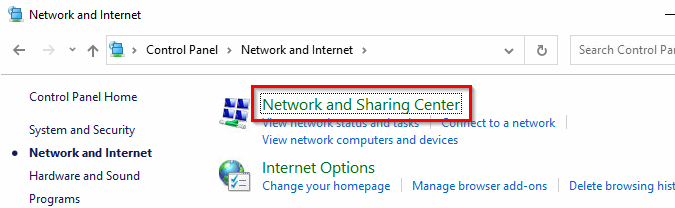

  • And then select Network and Sharing Center:

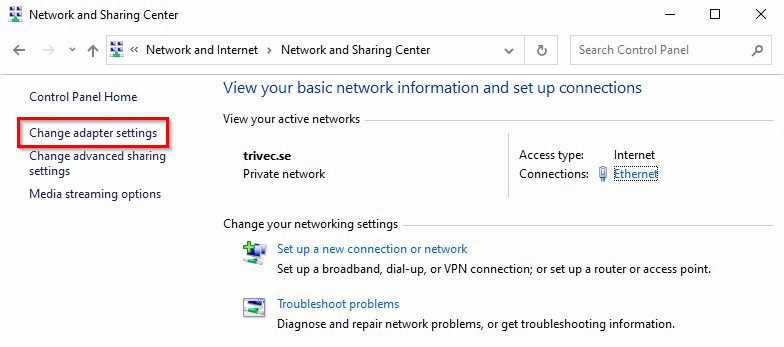

  • When inside Network and Sharing Center, select Change adapter settings:

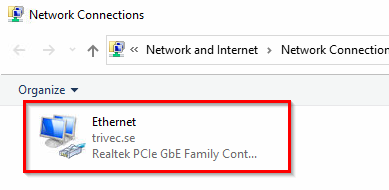

  • Double-click the visible network connection:

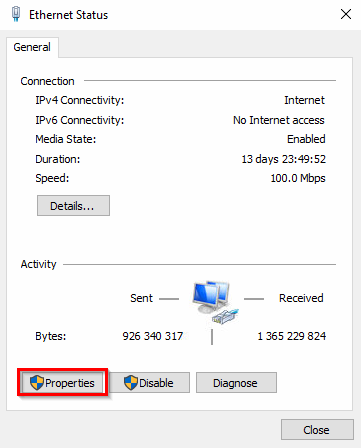

  • Select Properties:

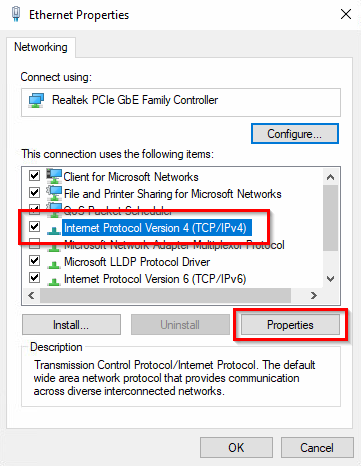

  • Select Internet Protocol Version 4 and Properties:

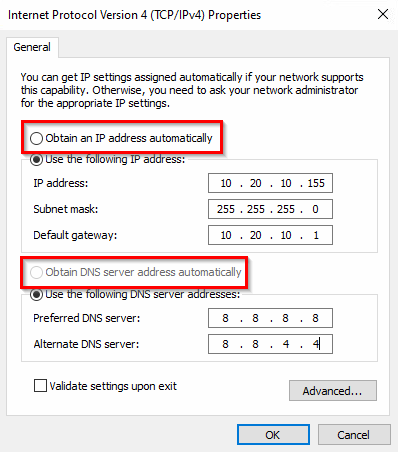

  • Select Obtain an IP address automatically and Obtain DNS server address automatically and confirm with OK:

  • If DHCP is available on the network, the device will switch over to it and regain connectivity.
