Using ODP-333 (receipt) printer

This article explains how to use the ODP-333 thermal printer.

Getting started

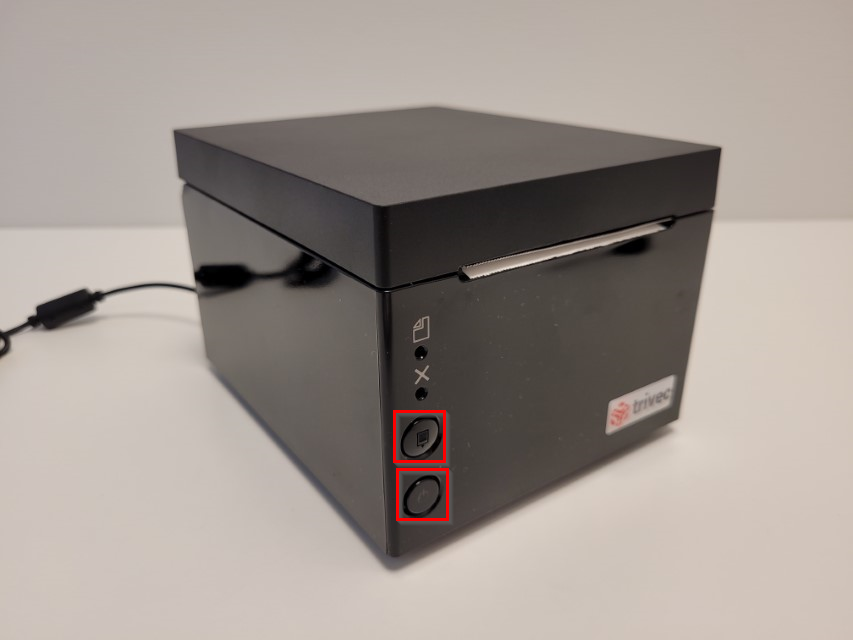

Turning the printer on/off

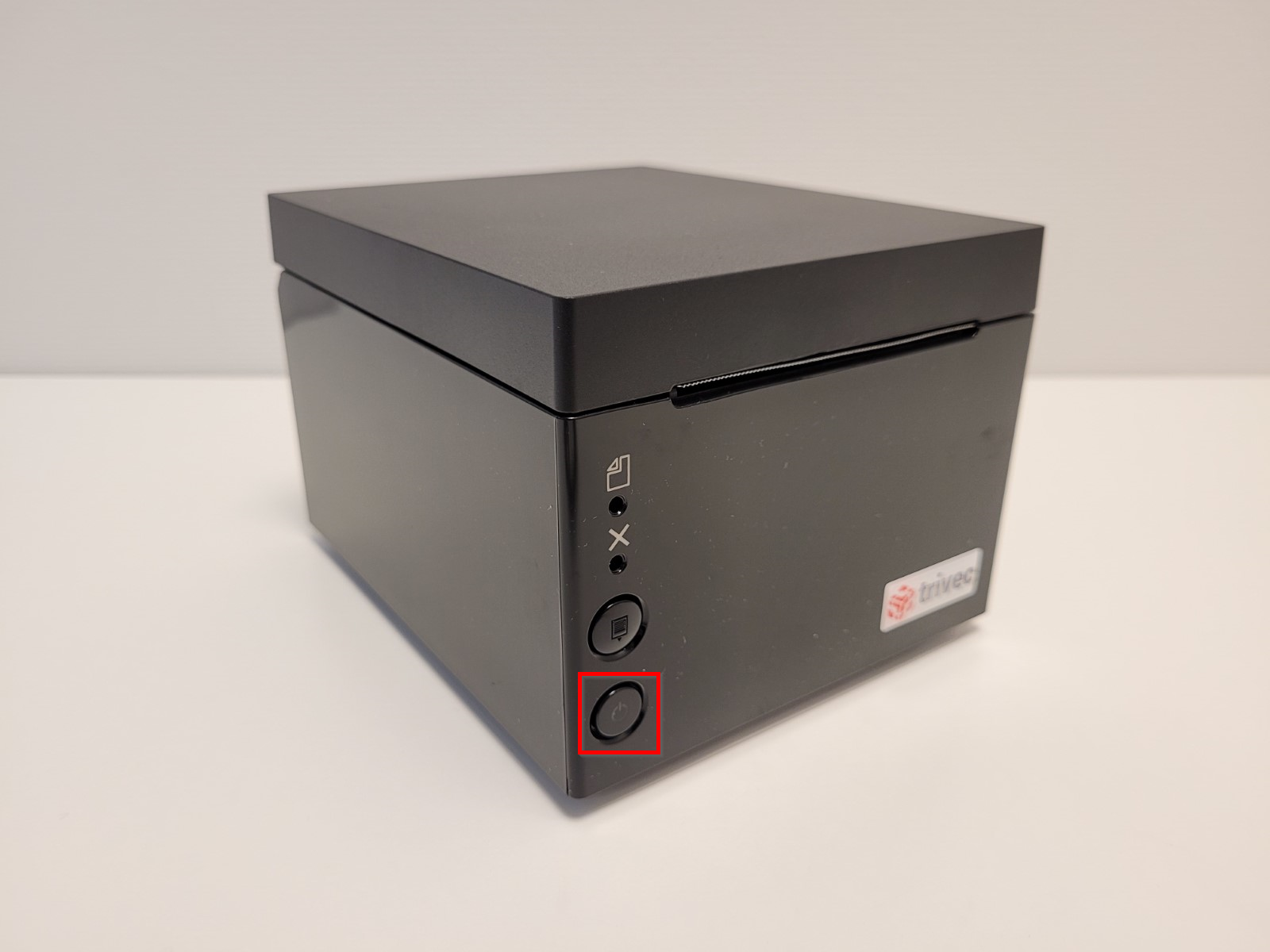

  • To turn the printer on/off, press the power switch:

  • When the printer is on, the power button blue LED will be on as well:

Feeding the paper

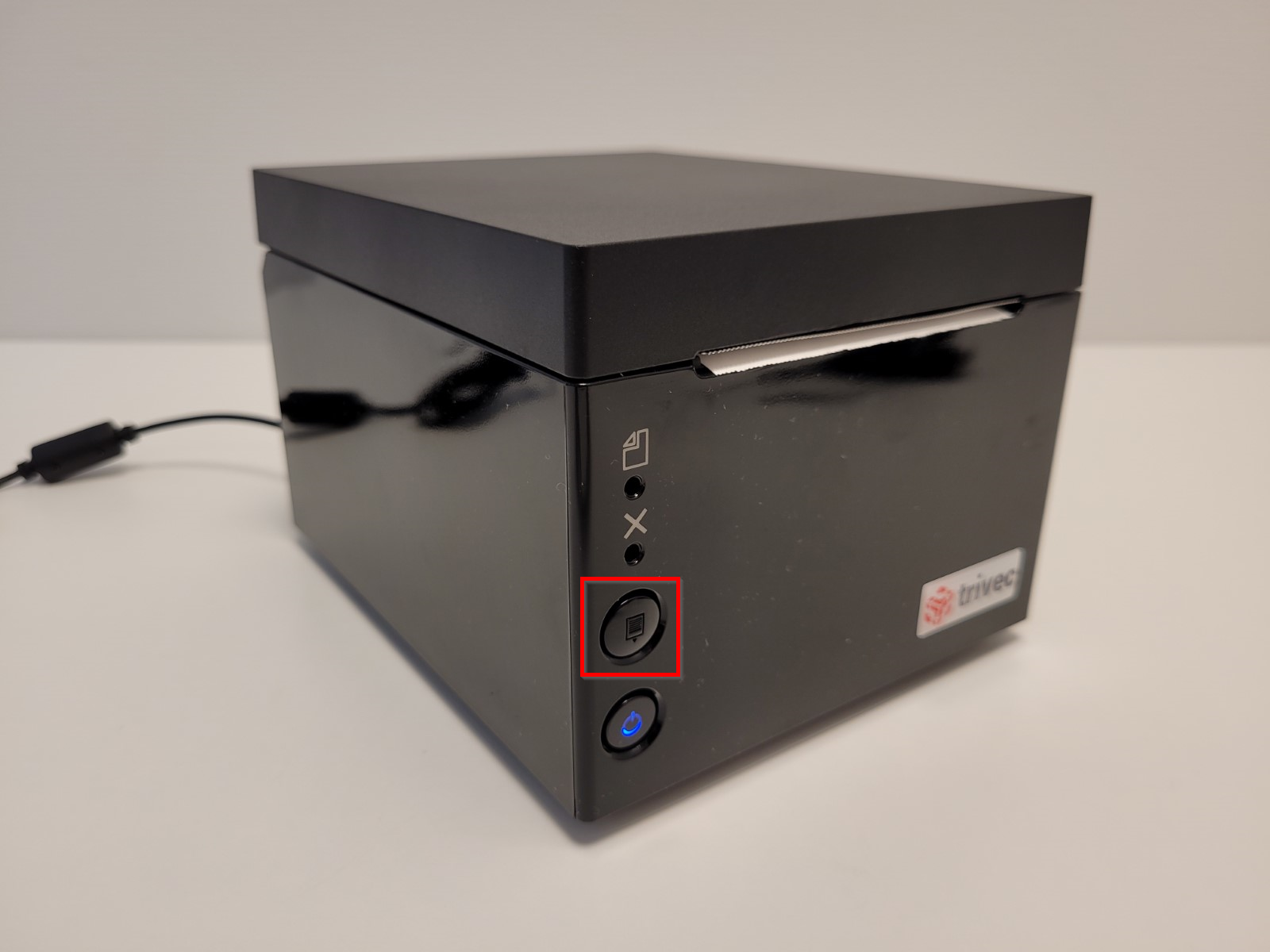

  • To feed the paper, press and hold the Feed button:

Paper type

ODP-333 uses a thermal printer paper. Paper width is 80 mm. NOTE: Paper type is not the same as the one used for impact (kitchen) printers, such as BTP-M300.

Replacing the paper

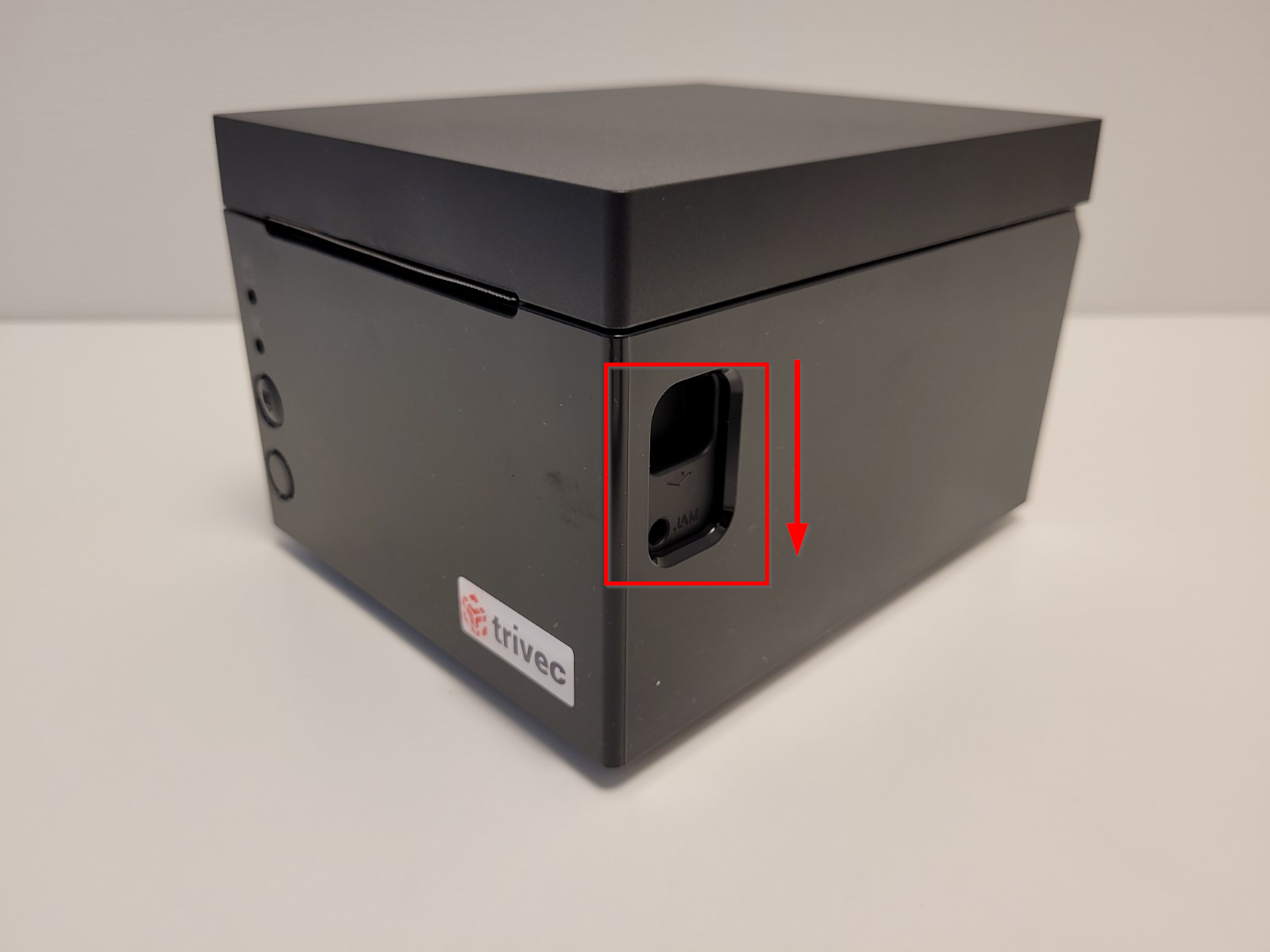

  • To replace the paper, open the printer lid by pressing down the knob that releases the lid:

  • Insert the paper roll, making sure it's oriented correctly:

Managing ODP-333

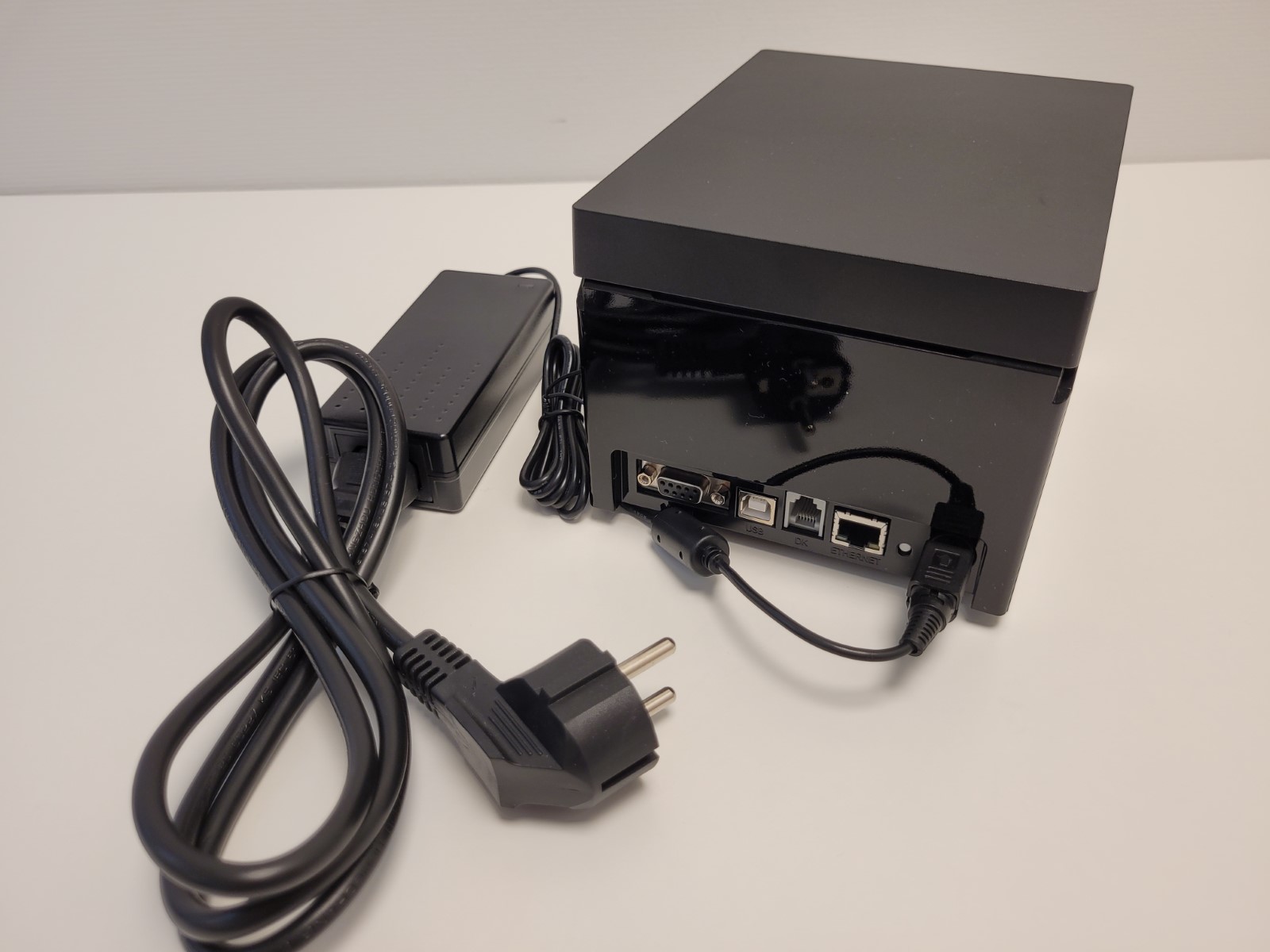

Types of cables

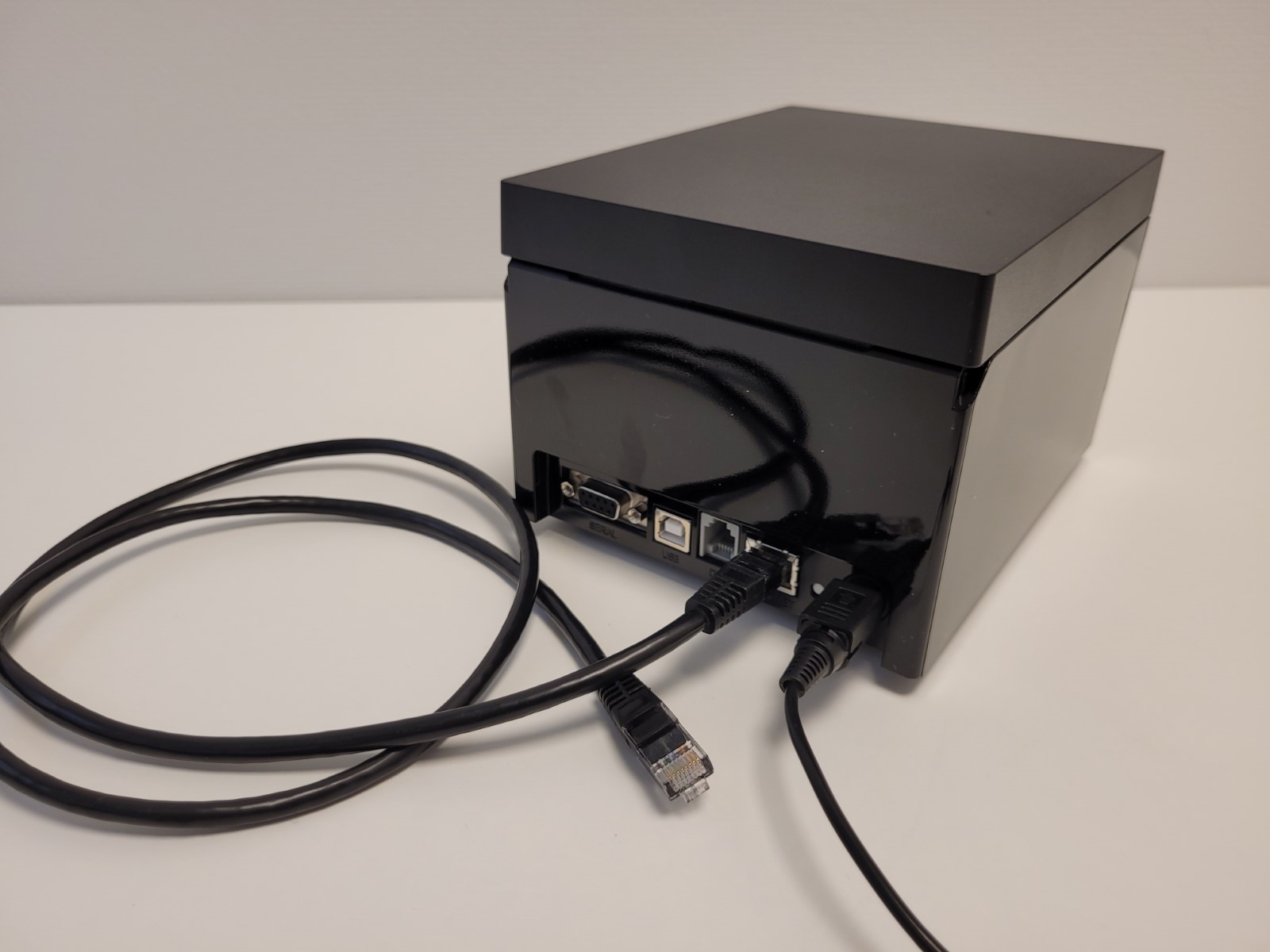

  • Ethernet cable:

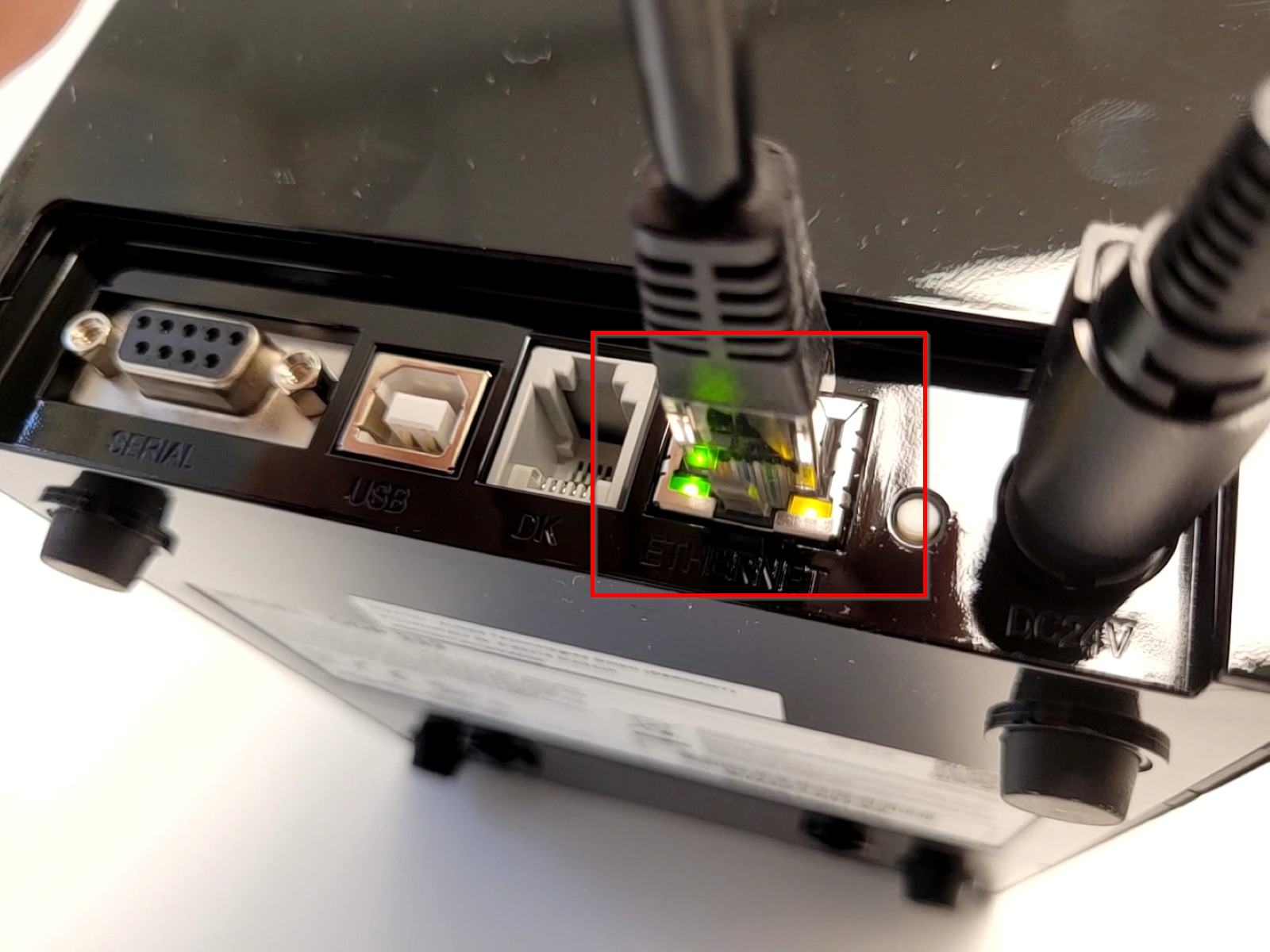

  • When connected to network, the green and yellow LEDs on the Ethernet interface will be on/blinking:

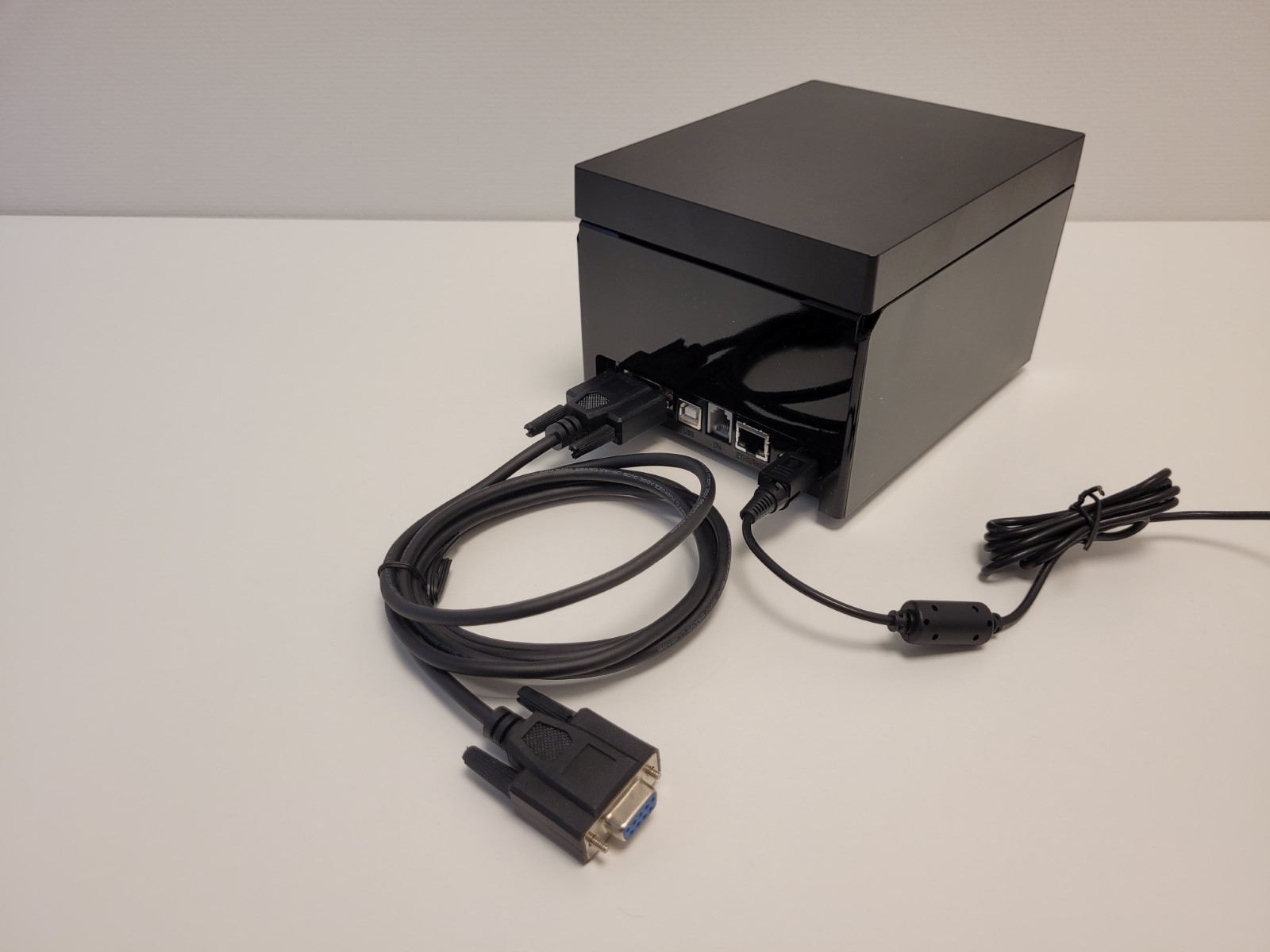

  • Serial (COM, RS232) cable:

  • USB cable:

  • Power Supply Unit (PSU):

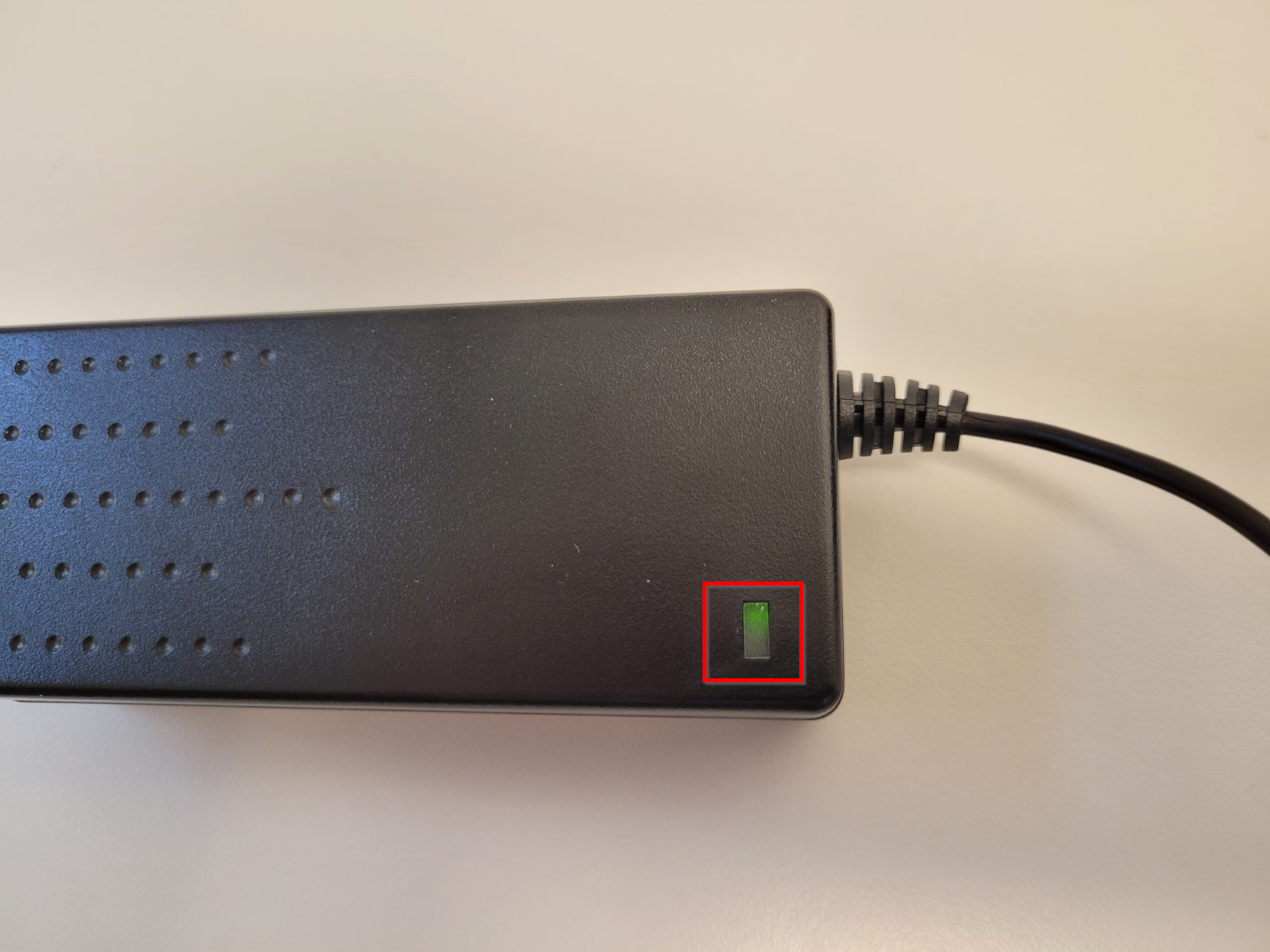

  • PSU has a green LED that is on when PSU is connected to power and operational:

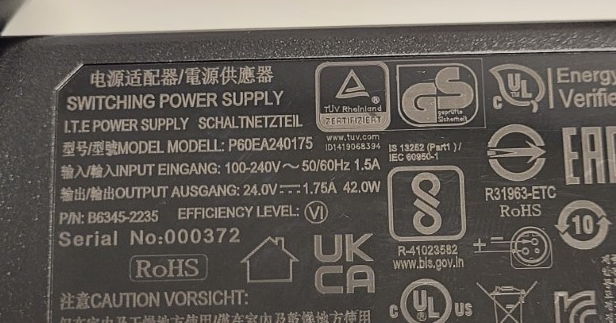

  • PSU info:

Printing a test page

Printing a test page is a test to make sure the printer is mechanically operational and can print at all. In case test print works, next step to troubleshoot is connectivity.

  • Turn the printer off by pressing the Power button.

  • Hold the Feed button (the upper one) and at the same time turn the printer on by pressing the Power button.

  • Release the Feed button when the test page starts printing.
