About Printers

Thermo printers (receipt)

BTP-S80 thermal receipt printer

  • Printer type: Thermo
  • Paper type/width: Thermo, 80 mm
  • Interface: RS232 (serial, DB9), USB, Ethernet
  • Baudrate: 115200
  • Psu: 24V, min 2,5A, 3 pin contact
  • Dimensions: 127x127x134 mm
  • Weight: 1,3 kg

For info on how to use BTP-S80 printer, check out Using BTP-S80 (thermal) printer.

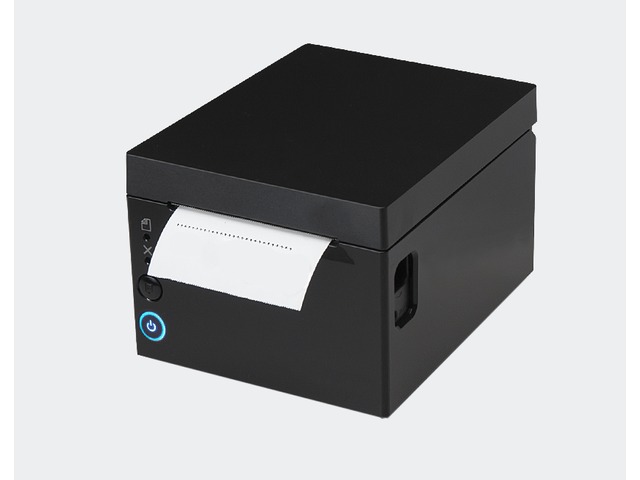

ODP333 thermal receipt printer


  • Printer type: Thermo
  • Paper type/width: Thermo, 80 mm
  • Interface: RS232 (serial, DB9), USB, Ethernet
  • Baudrate: 9600
  • Psu: 24V, min 1,75A, 3 pin contact
  • Dimensions: 166x135x108 mm
  • Weight: 1,4 kg

For info on how to use ODP333 printer, check out Using ODP333 (thermal) printer.

BTP-R880NP thermal receipt printer


  • Printer type: Thermo
  • Paper type/width: Thermo, 80 mm
  • Interface: RS232 (serial, DB9), USB (not used), Ethernet
  • Baudrate: 9600
  • Psu: 24V, min 2A, 3 pin contact
  • Dimensions: 145x145x200 mm
  • Weight: 1,7 kg

For info on how to use BTP-R880NP printer, check out Using BTP-R880NP (thermal) printer.

Impact printer (kitchen)

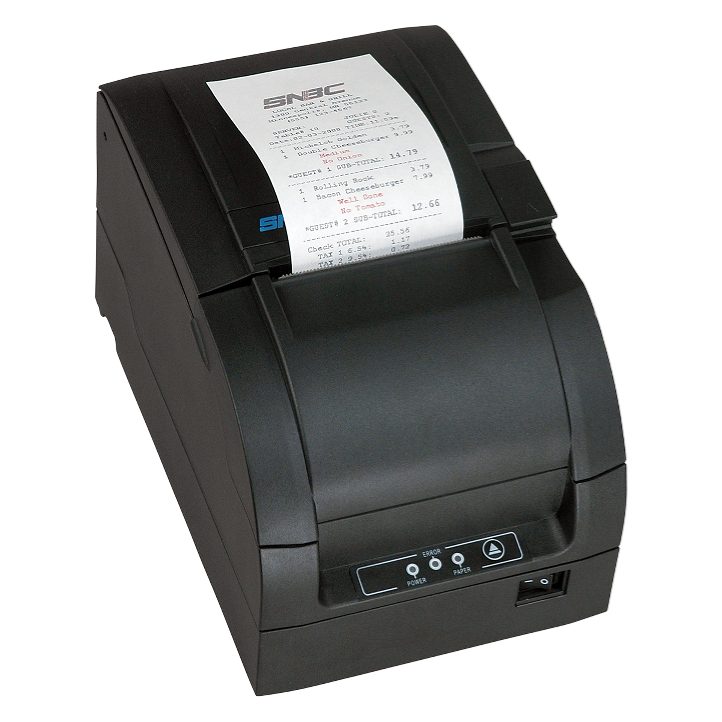

BTP-M300 impact kitchen printer


  • Printer type: Impact
  • Paper type/width: Regular (not thermo), 76 mm
  • Interface: RS232 (serial, DB9), USB (not used), Ethernet
  • Baudrate: 9600
  • Psu: 24V, min 1A, round contact
  • Dimensions: 160x155x245 mm
  • Weight: 3,2 kg

For info on how to use BTP-M300 printer, check out Using BTP-M300 (impact) printer.
