This article explains how to use PT6500 POS devices.
Getting started
Turning on the device

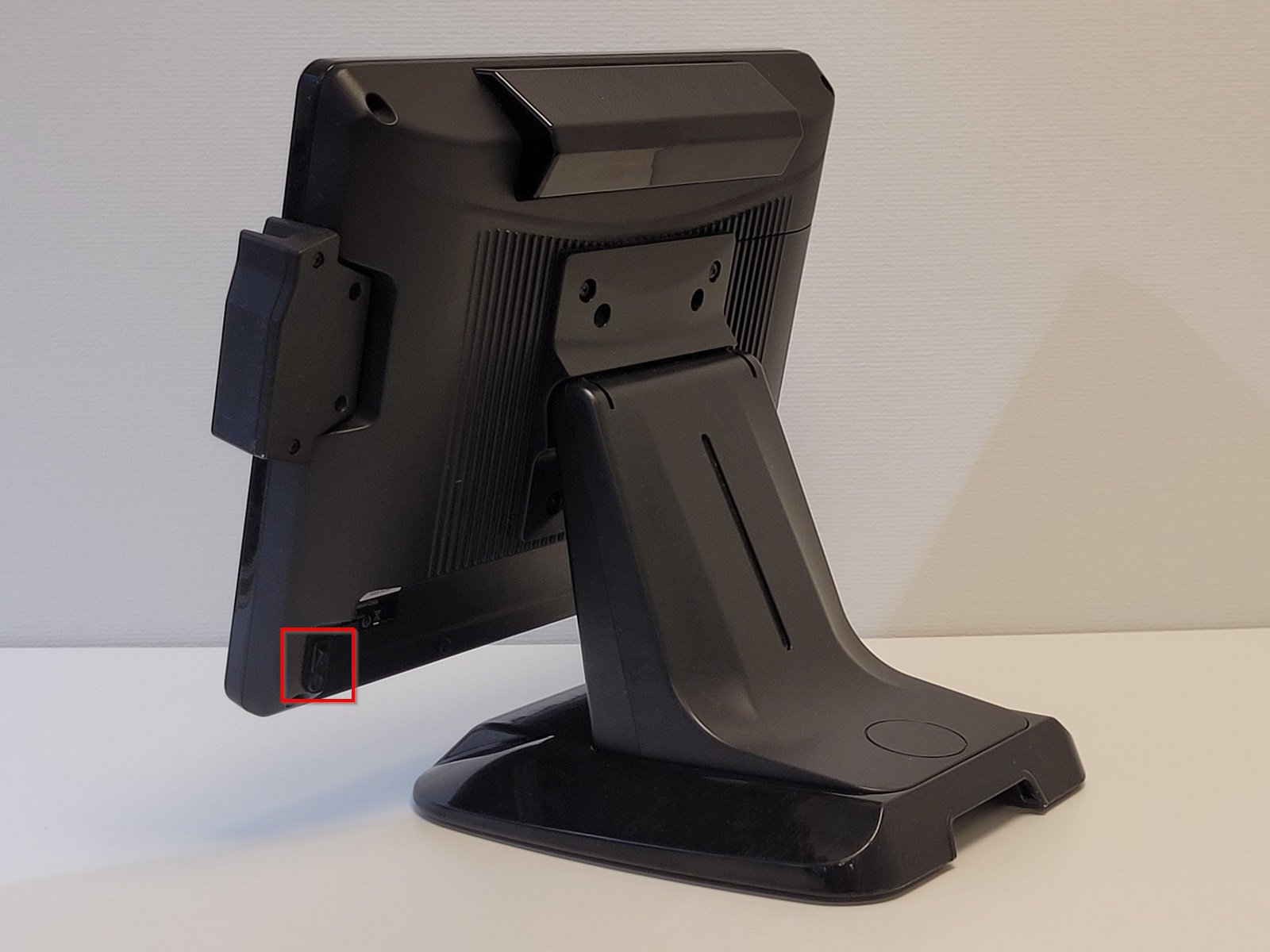

Power button for the device can be found to the right behind the lower right corner of the screen:
- Press the button once for the device to start. You will hear a short beep.

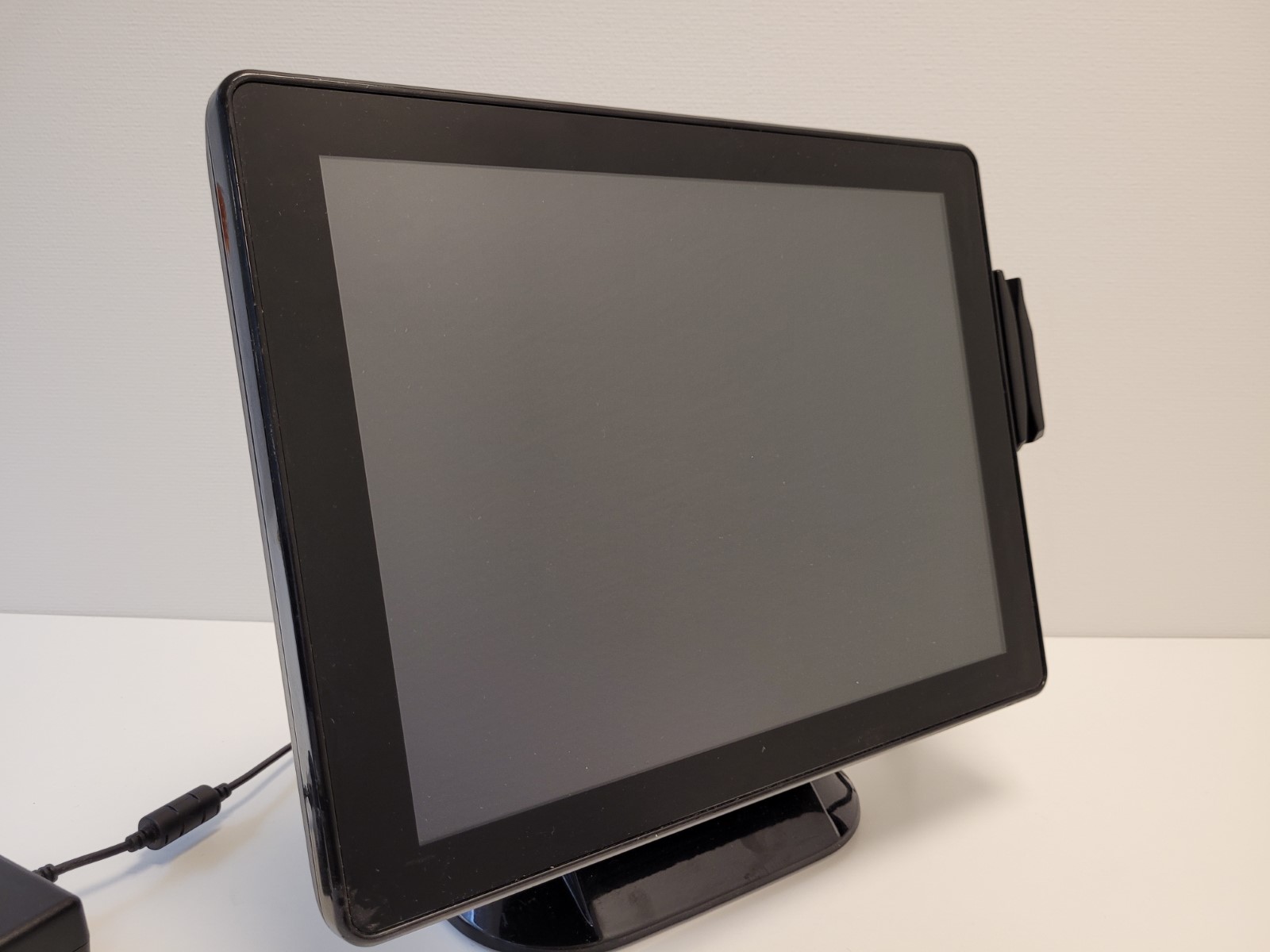

- PT6500 has no LED light, so there is no way of telling if it's operational or not:
Managing PT6500
Connecting a mouse or keyboard
Several USB interfaces can be found under the screen:
Types of cables
There are several types of cables used with Yuno:
- Peripherals using COM cables are connected to the device directly, using one of the two COM interfaces (COM1 and COM2):

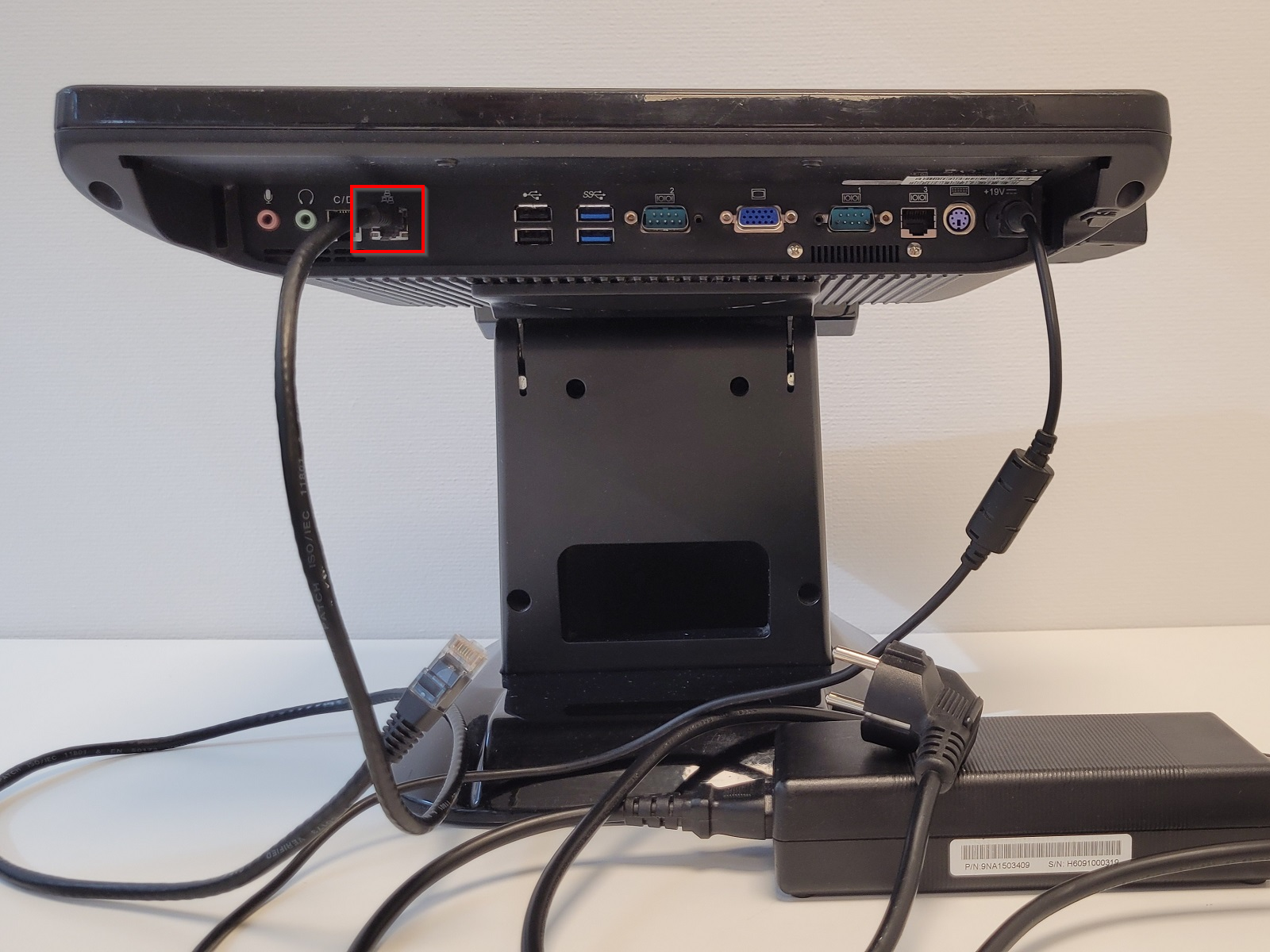

- Ethernet cable:

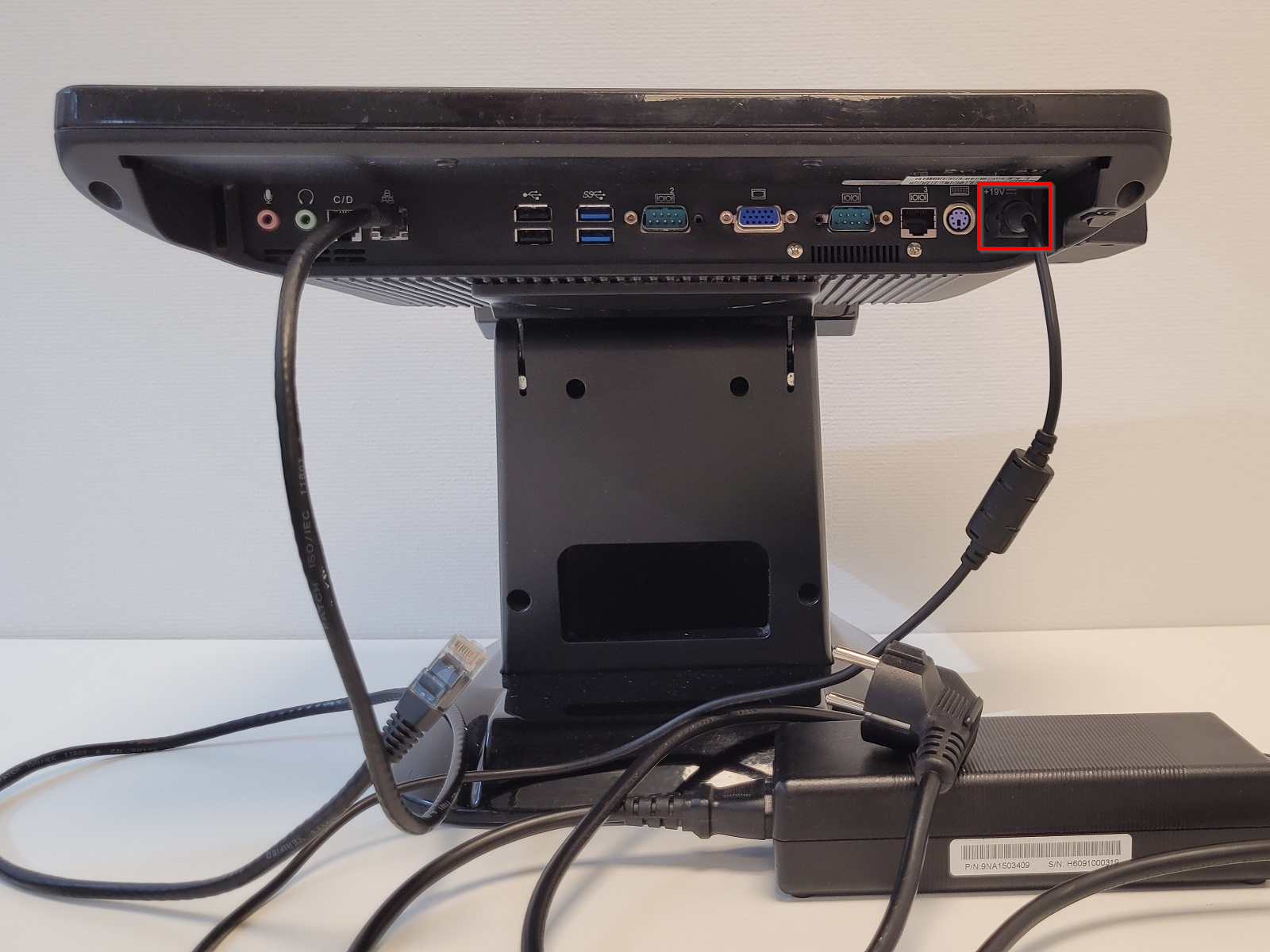

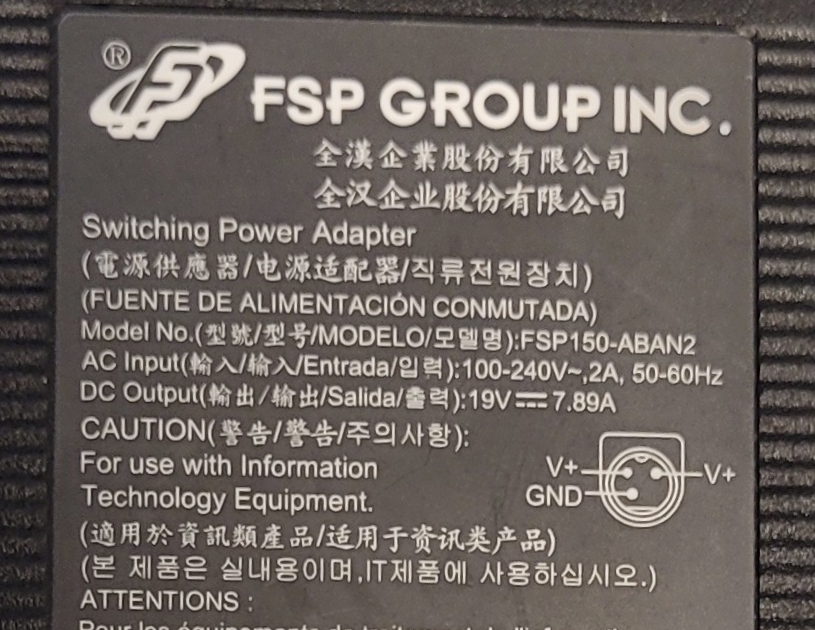

- Power Supply Unit (PSU):

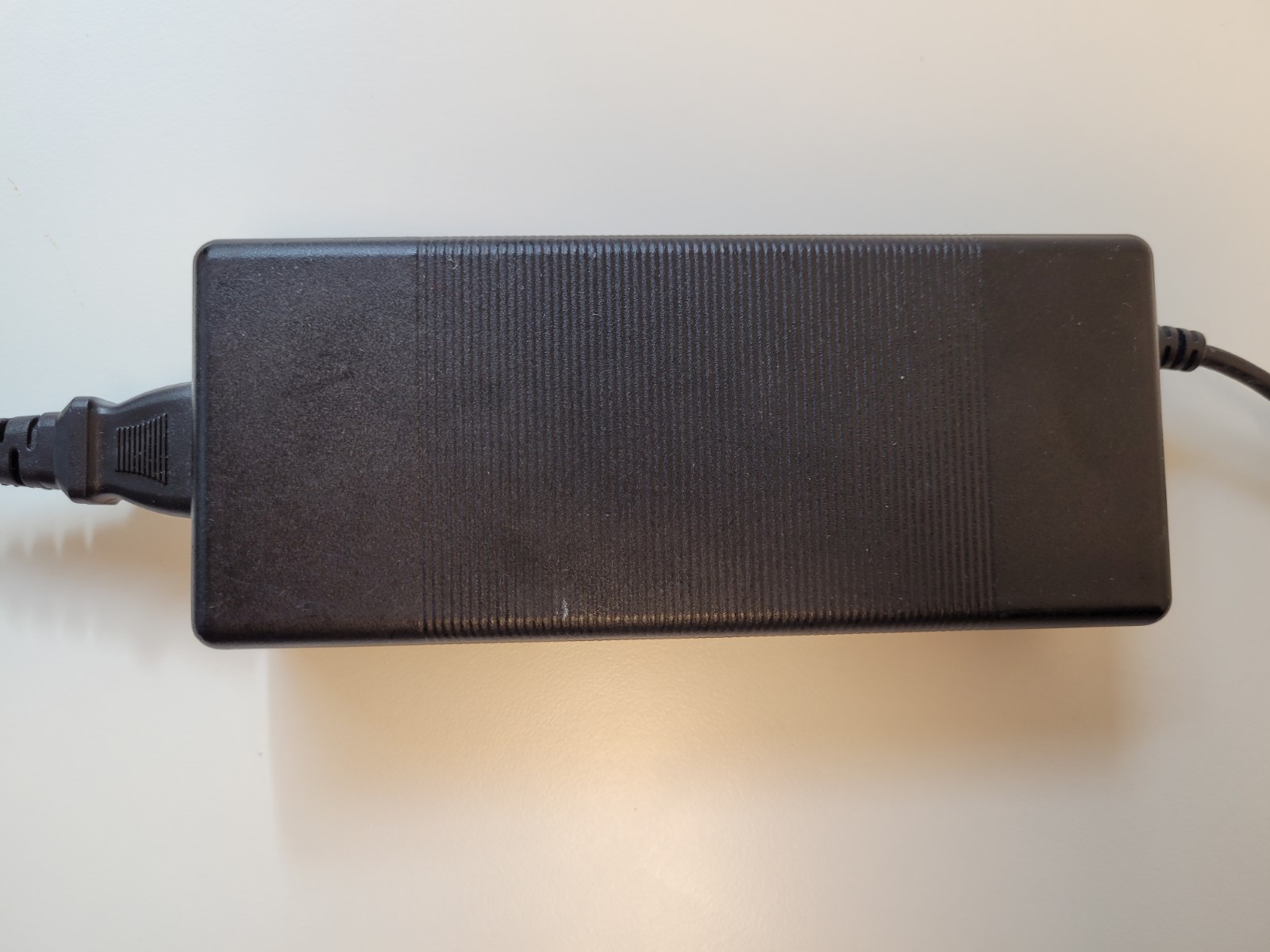

- PSU Vhas no LED light, so there is no way of telling if it's operational or not:
Connecting a card reader
Connecting a card reader to PT6500 is a simple process that requires only basic skill with a screwdriver. You will need a small-diameter Phillips screwdriver.

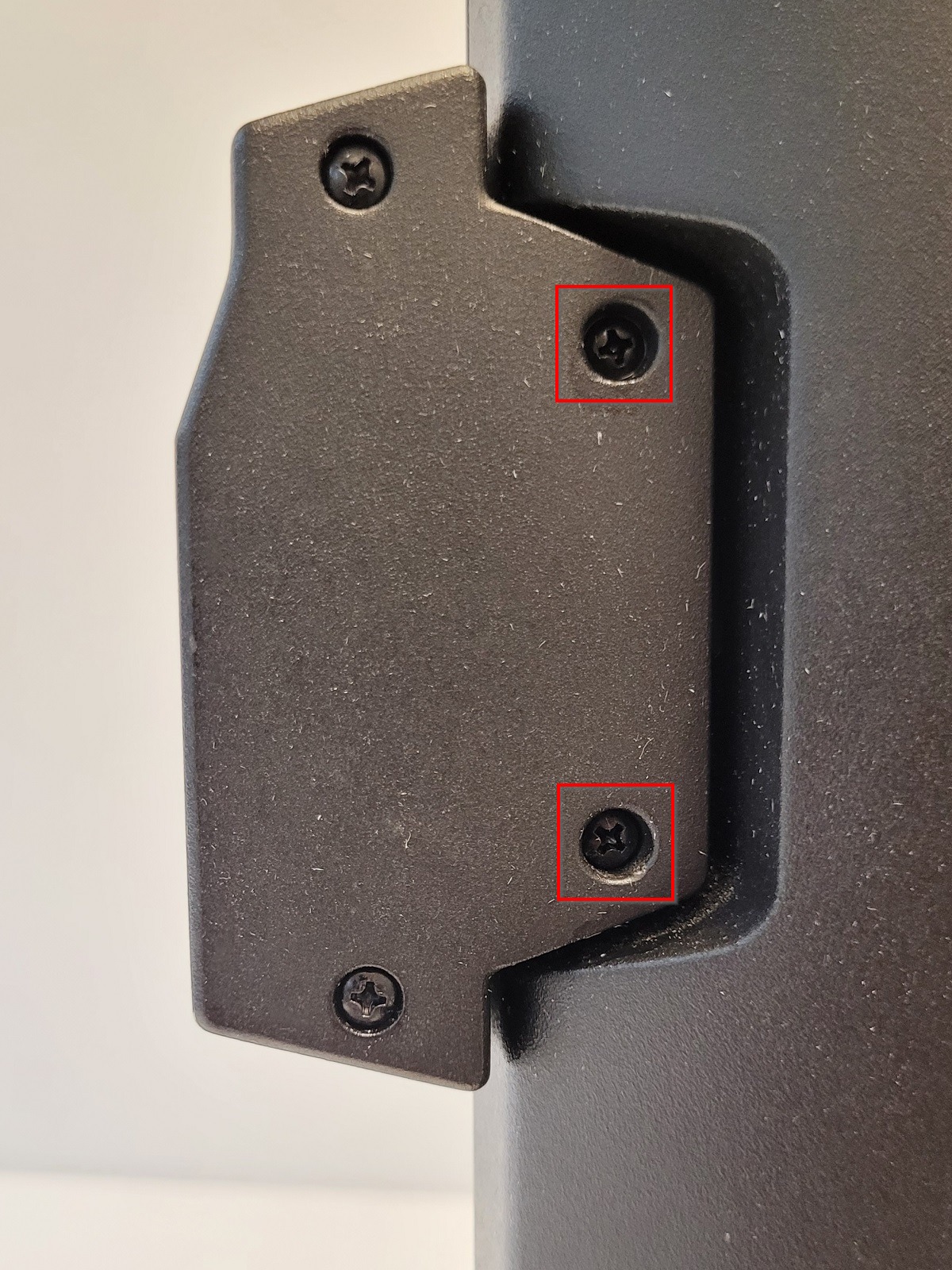

- Card reader is secured using the two screws:
What's next?
For info on how to use PT6500 with Domino, check out Logging into Domino .
For info on troubleshooting PT6500 devices, check out Troubleshooting PT6500.
