iPP350 & Lane/3000: Configuring device settings

This guide explains how to configure iPP350 and Lane/3000 devices.

Configuring the terminal

• Press the Menu button (the one above the red button.

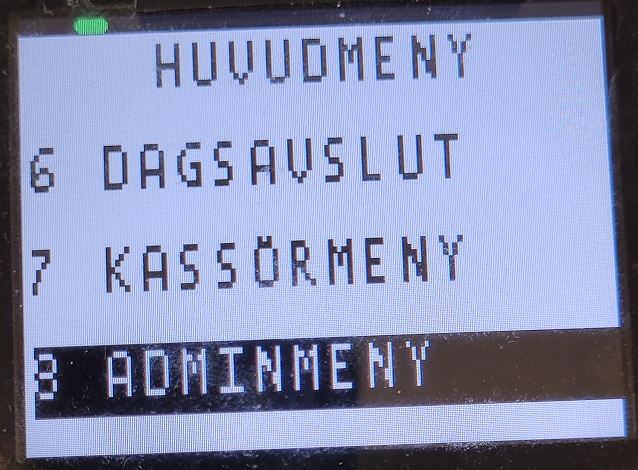

Scroll down and select ADMINMENY (or press 8 on the keypad):

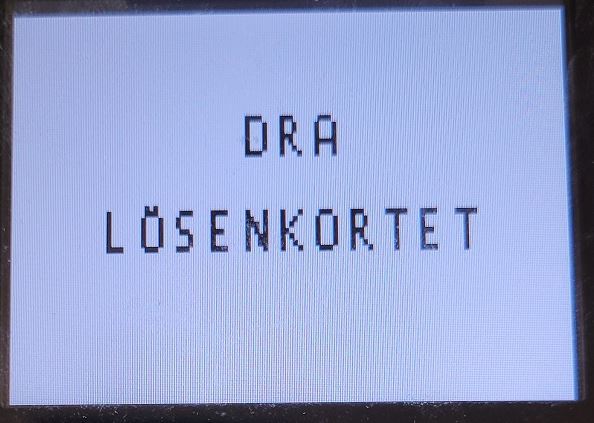

Swipe the Merchant card when prompted:

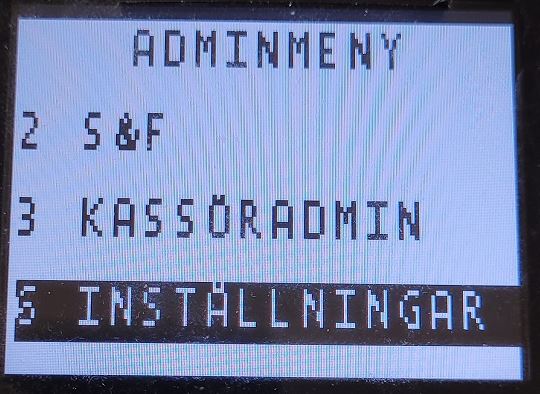

Scroll down and select INSTÄLLNINGAR (or press 6 on the keypad):

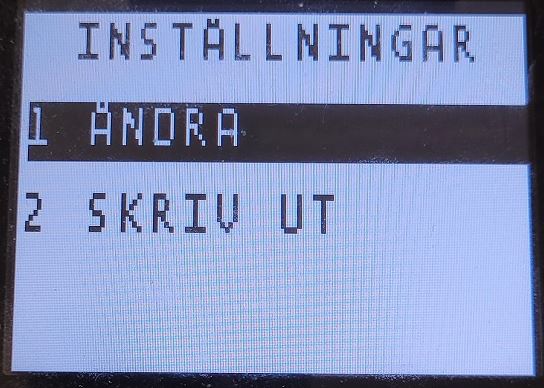

Select ÄNDRA (or press 1 on the keypad):

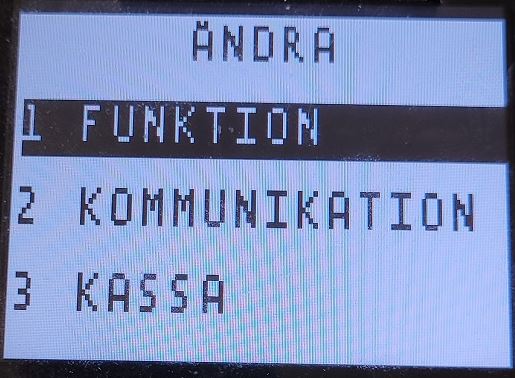

Select FUNKTION (or press 1 on the keypad):

• Use the down key to check that the following settings are correct:
  • 1 – FUNKTION
    • Terminal ID: XXX
    • Beloppsläge = Kronor (Öre)
    • S&F = Ja (Nej)
    • Serv Första = Nej (Ja)
    • Infofält = Ingen info (Ocr, Info text, Kassör ID)
    • Ljud = Vid fel (Alltid, Inget)
    • PIN knappljud = Alltid (Inget)
    • Alltid Kopia = Nej (Ja)
    • Dublettkontr. = Nej (Ja)
    • Language = Swedish
    • Dricks = Totalbelopp (NEJ, Extrabelopp)
    • Ändra kassör = Utan kassör (Dagsavslut, Z-total, Alltid, O-Rapport)
    • Moms = Fast moms (Ingen moms, Ändra moms)
    • Momssats = 0,00
    • Reservför. Språk = English
    • Bakgrundsljus = Auto (Alltid)
    • Chip info text = Chip uppåt (Chip mot dig, Chip ned)
    • IF Priority = Domestic (International, None)
    • Reboot Time = 04:00
• Press the red button (Stop) to move back to ÄNDRA menu

Select KOMMUNIKATION (or press 2 on the keypad):

• Use the down key to check that the following settings are correct:
  • 2 - KOMMUNIKATION
    • Komm. typ = Ethernet (Via ecr)  // (if connected via Ethernet, otherwise "Via ecr" if connected with USB or rs232/serial cable
      // if Ethernet is enabled:DHCP = DHCP (Statisk)
    • Host IP Adress = 91.102.24.142
    • HOST IP port = 9670
• Press the red button (Stop) to move back to ÄNDRA menu

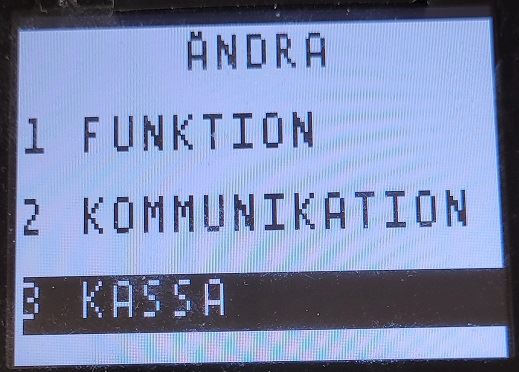

Select KASSA (or press 3 on the keypad):

• Use the down key to check that the following settings are correct:
  • 3 – KASSA
    • ECR = JA (NEJ) // Enables or disables BAXI functionality
    • Komm.Typ = IP ethernet (USB slave, RS232) // Depending on how the device is connected to the POS: IP ethernet = network, USB slave = USB, RS232 = serial cable)
    • ECR IP ADRESS = x.x.x.x // If connected via Ethernet, enter the IP address of the POS sending transactions to the terminal)
    • ECR IP Port = 6001 // or 6002, 6003 etc., in case there are several terminals configured on the POS device, 1 port per terminal
    • ECR hastighet = 9600 (4800, 2400, 1200, 115200, 57600, 38400, 19200)]
    • Kortinfo = Aldrig (Alltid, Efter belopp)
    • Kvittohuvud/-fot = Nej (Ja)
• Press the red button (Stop) several times until the device restarts.
