iWL250: Configuring P@T server address

This guide explains how to enter the IP address of the P@T server in iWL 250.

Server IP needs to be configured in the terminal so it can connect to the Pay@Table service and display tables.

• Make sure docking station is connected with an Ethernet and power cable.

Press the Menu button (the one above the red button):

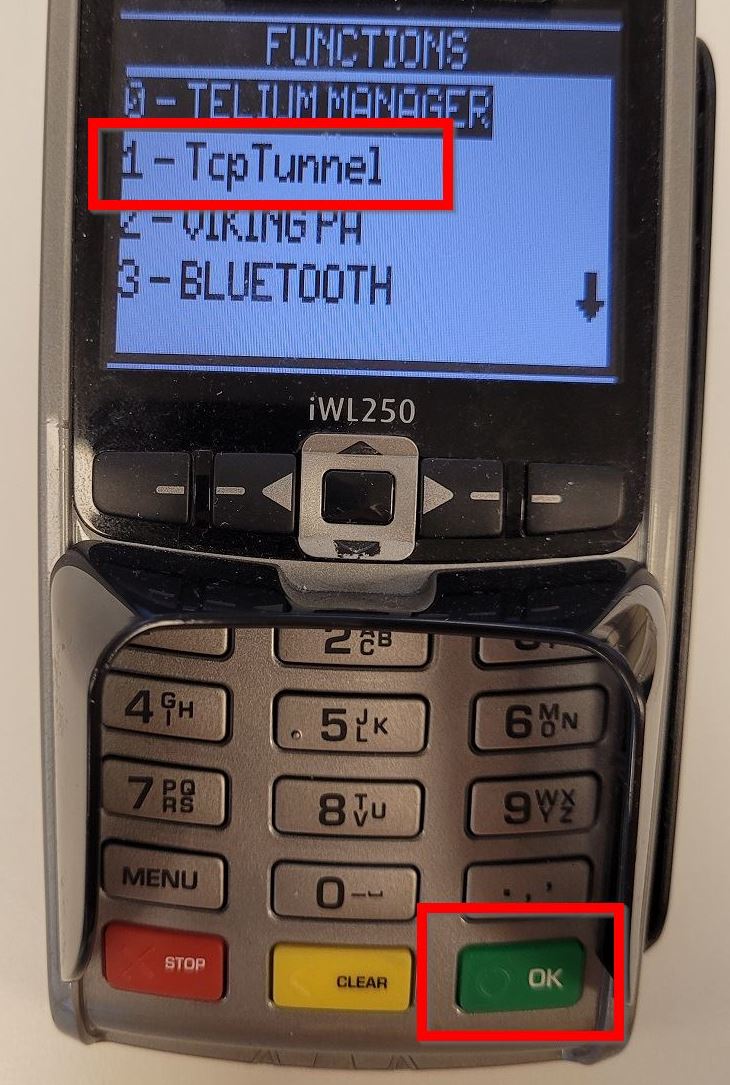

Scroll down to TcpTunnel using the arrow keys and confirm with OK.

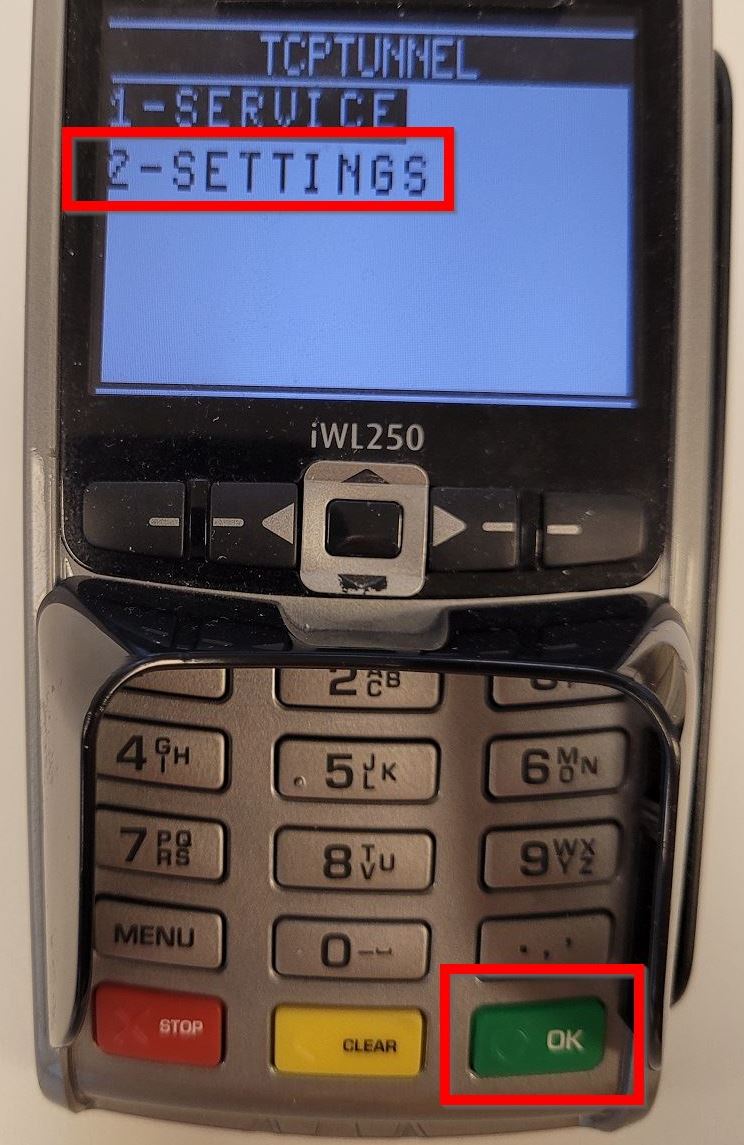

Scroll down to Settings using the arrow keys and confirm with OK.

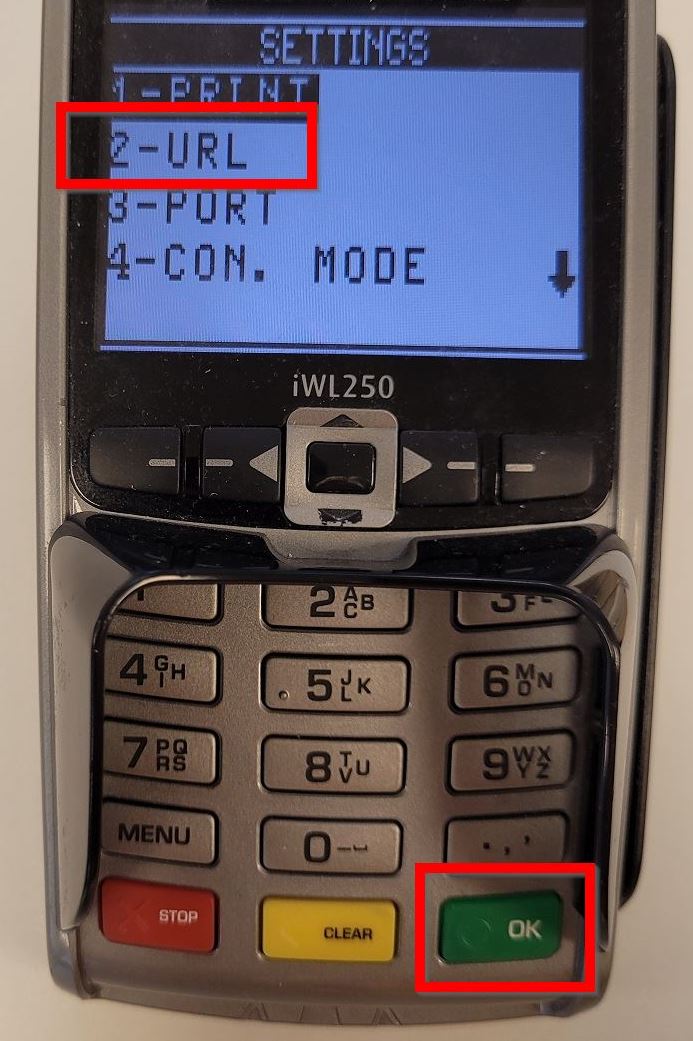

Sroll down to URL using the arrow keys and confirm with OK.

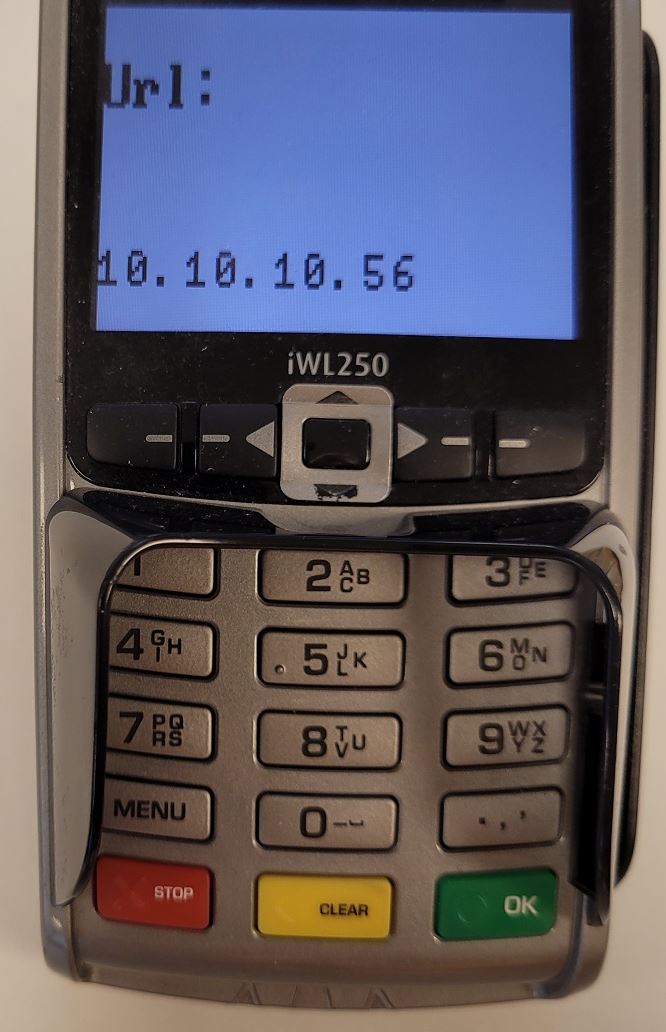

Enter P&T server IP (with dots). Use the yellow (Clear) button to delete. Confirm with OK.

• If p@t mode is missing and the device is in Viking mode instead, restart it by holding the yellow (Clear) and the dot button on the keypad until it shuts down. Then hold the green (OK) button until it starts again. In case the device is in Viking mode even after restart, contact Nets so that they enable pay@table mode.
• If the device is still displaying Conn.faliure, follow the Pairing iWL250 device with the docking station guide to pair the device with the docking station again.
