Creating new table plans and tables

This guide explains how to create new table plans and tables.

Creating new table plans

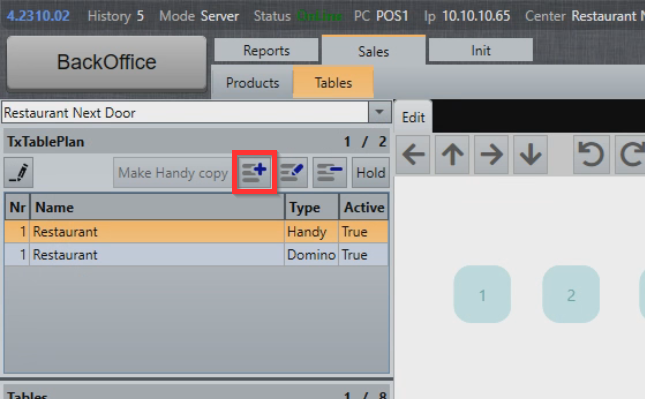

• To create a new table plan, select the Add symbol on the table plan list:

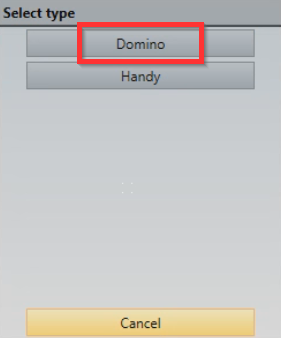

• In the Type menu, select Domino:

• In the New Table Plan menu, you can configure the following fields:
  • Active: Enables or disables the table plan (Yes/No)
  • Plan Nr: Table priority on the list, the higher the number, the lower the plan will appear on the list. This setting also affects the Sales mode table plan positioning
  • Name: Table plan name
  • Center: Center that table applies to (if used)
  • Type: Enables visibility in either Domino or Handy

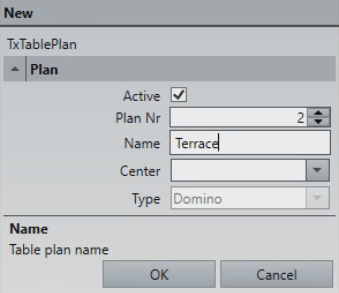

• In the Plan Nr field, enter "2", in the Name field, enter "Terrace" and select OK:

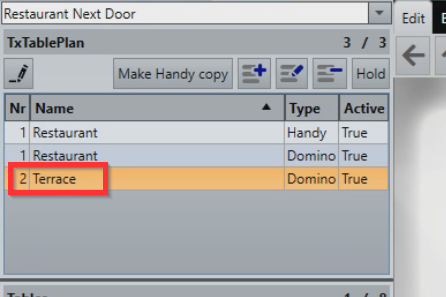

• A new table plan has now been added. To switch between table plans, click the table plan in the table plan list:

Creating new tables

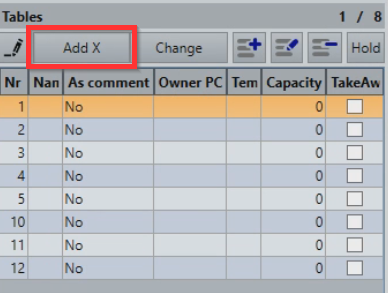

• If the table you would like to add is missing from the table list, select Add X above the table list to open the table creation menu:

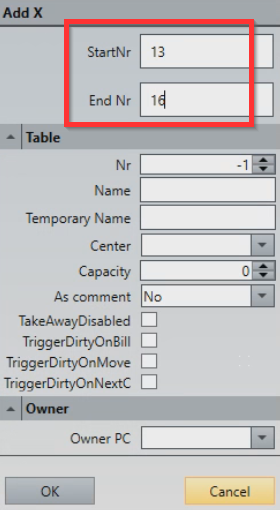

• To add tables to the list starting with table 13 and to end with 16 (tables 13, 14, 15, 16), enter "13" as StartNr and "16" as EndNr:

• Other table settings are:
  • Nr - Table number to create (can create doubles)
  • Name - Name that's always displayed on the table map, can be temporarily renamed. For more info, check out Renaming a table.
  • Temporary Name - Temporary name valid until next day
  • Center - Controls which center table is assigned to.
  • Capacity - Configures a default number of covers on a table.
  • As comment - Used with puck system (e.g. Syscall), enabling it does not place order on a table on table map, table is instead displayed as a comment on the order ticket
    • No (default settings) - Disables table as comment
    • Yes - Enables tables as comment only
    • Asked - Prompts for choice to use as comment
  • TakeAwayDisabled - Disables TakeAway functionality on a table
  • TriggerDirtyOnBill - Sets table as dirty after payment is completed
  • TriggerDirtyOnMove - Sets table as dirty after move
  • TriggerDirtyOnNextC - Sets table as dirty after nextcourse
  • Owner - Configures which POS owns the table.

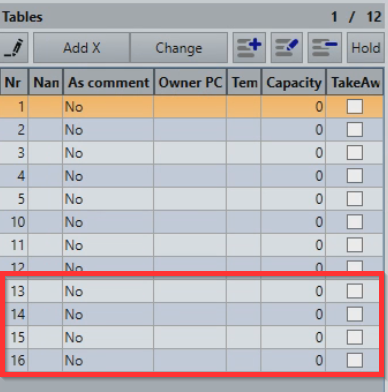

• New tables have now been added to the table list:

What's next?

To modify existing tables and table plans, check out Modifying tables and table plans.
